PC material with strong adhesive film

I. Product introduction: PC material with film is jiangyin Mr Cheung image materials co., LTD., the latest research and development products, in the process of fabrication directly used for offset printing or screen printing UV ink, adhesive, this series with film of ink adhesion good color fastness, high temperature resistant laminated deformation, discoloration, don't pick the color of all sorts of color good bonding strength, aging performance room temperature placed the longer the higher bonding strength.

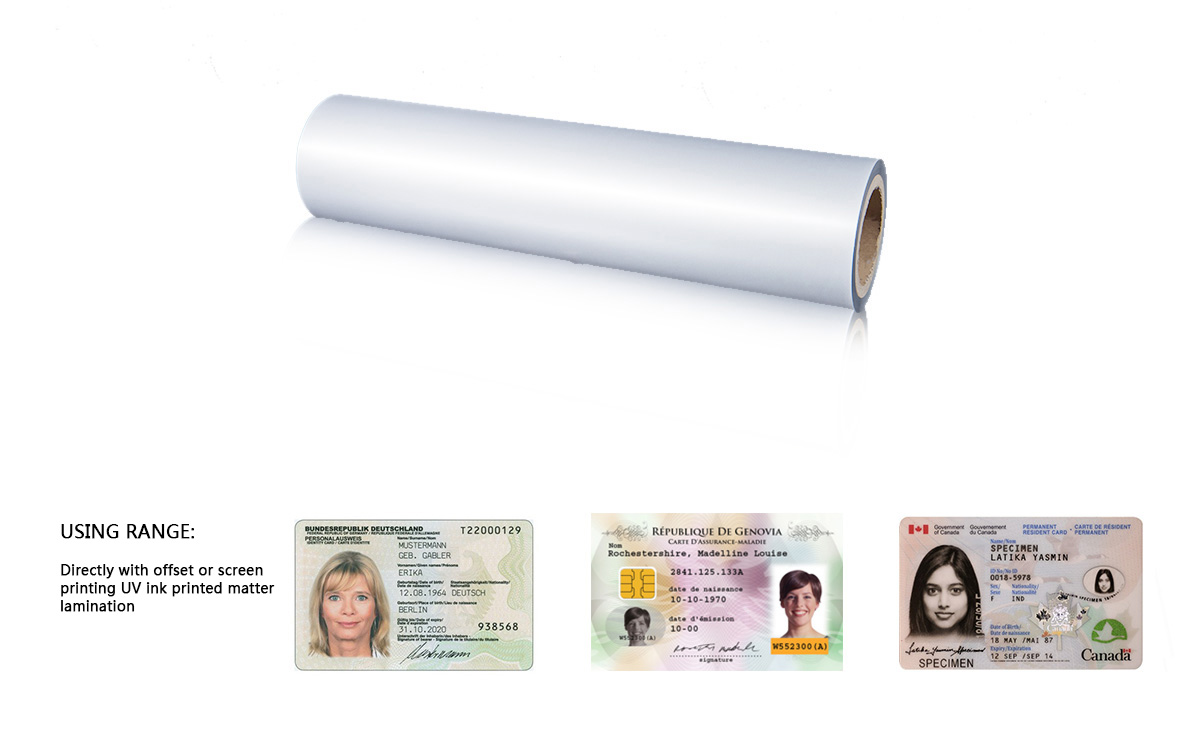

Ii. Usage: directly laminate UV ink printed matter with offset printing or screen printing

Iii. Technical features:
1, suitable for pearl ink, screen printing gold and silver bottom and dark ink lamination, lamination strength is high
2, can maintain the clarity of fluorescent anti-counterfeiting identification
3, film does not adhere to each other, suitable for mounting magnetic strip
4, wear resistance, effectively extend the life of the card
5, business card printing process environmental protection, no solvent, exhaust emissions

Project Indicators
Appearance Clean and smooth
Size Length(mm) ±1
Wide(mm) ±1
Degree(mm/m) ≤1
Thickness(mm) ±10%
Vicat softening point(℃) A50 115±3
90°Peel strength(N/cm) ≥6

V. Lamination process:

Laminated unit Temperature(℃) Pressure(MPa) Time(min)
Hot pressing 130~155 ≥7.5 20~30
Cold pressing ≤25 ≥7.5 ≥20

Vi. Packing: outer packing: carton inner packing: polyethylene film

Vii. Storage conditions and shelf life: the products must be stored indoors and the stacking height shall not exceed 1 meter. Pay attention to when stored in sealed, avoid light at room temperature, moisture, environment temperature 5 ℃ ~ 30 ℃. The shelf life under normal storage conditions is one year.

Viii. Matters needing attention:
1. The substrate is placed horizontally to avoid direct sunlight;
2. Take as needed, seal and save, and use up as soon as possible after opening.
