Digital print

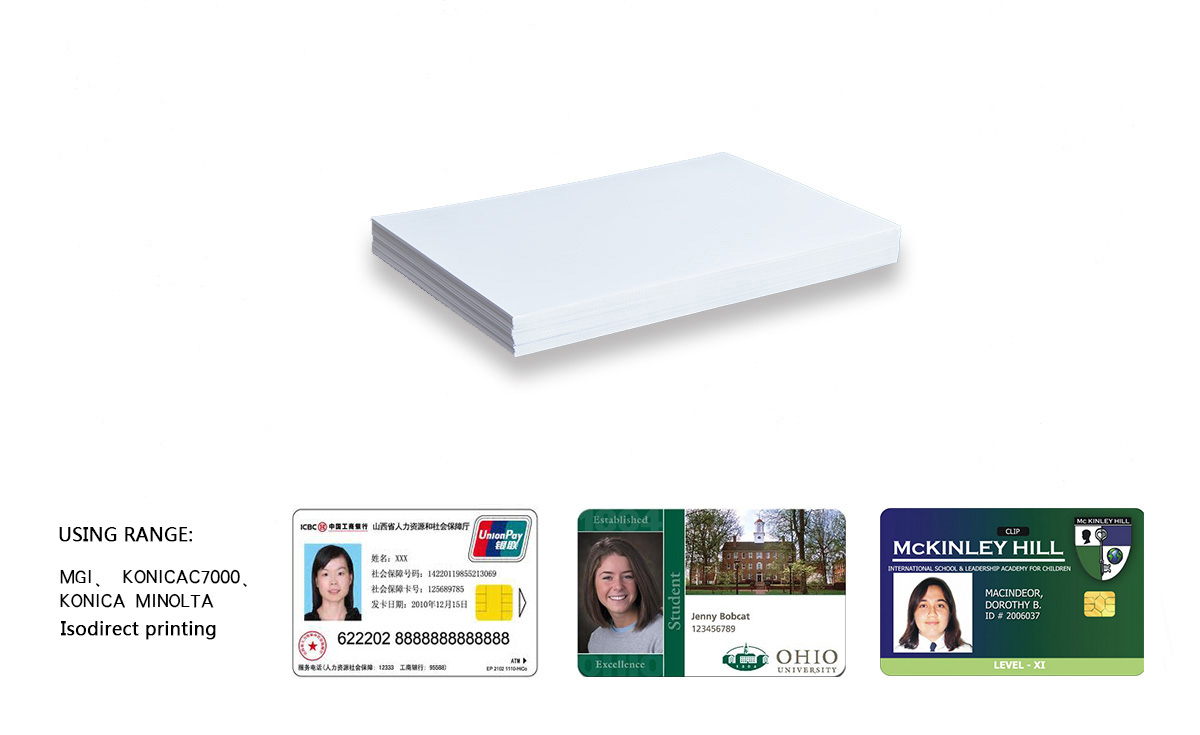

I. Product introduction: digital printing plate is a new type of printing substrate launched by jiangyin aoxiang imaging materials co., LTD., which is suitable for machine digital printing processes such as MGI, KonicaC7000 and Konica Minolta. Digital printing plate has the advantages of clear printing image, good fastness to ink adhesion, high temperature resistance of the substrate and so on. It is suitable for the production of various certificates and CARDS.

Ii. Usage: MGI, KonicaC7000, Konica Minolta and other machines can print directly

Iii. Technical features:
1. Suitable for printing
2, digital printing plate and ink adhesion fastness

Iv. Technical parameters:
Project Indicators
Appearance Clean and smooth
Size Length(mm) ±0.5
Wide(mm) ±0.5
Degree(mm/m) ≤1
Thickness(mm) ±10%
90°Peel strength(N/cm) ≥6

V. Lamination process:

Laminated unit Temperature(℃) Pressure(MPa) Time(min)
Hot pressing 110~145 ≥7.5 20~30
Cold pressing ≤25 ≥7.5 ≥20

Vi. Packing: outer packing: carton inner packing: polyethylene film

Vii. Storage conditions and shelf life: the products must be stored indoors and the stacking height shall not exceed 1 meter. Pay attention to when stored in sealed, avoid light at room temperature, moisture, environment temperature 5 ℃ ~ 30 ℃. The shelf life under normal storage conditions is one year.

Viii. Matters needing attention:
1. The substrate is placed horizontally to avoid direct sunlight;
2. Take as needed, seal and save, and use up as soon as possible after opening.
